Acoustic Fencing



Tendercare Nurseries is the UK supplier and installer for Kokosystems’ range of acoustic barrier solutions.

Increasingly specified by planning authorities, engineers and architects the products provide highly effective noise absorption and insulation, and are aesthetically pleasing for all situations, both commercial and domestic.

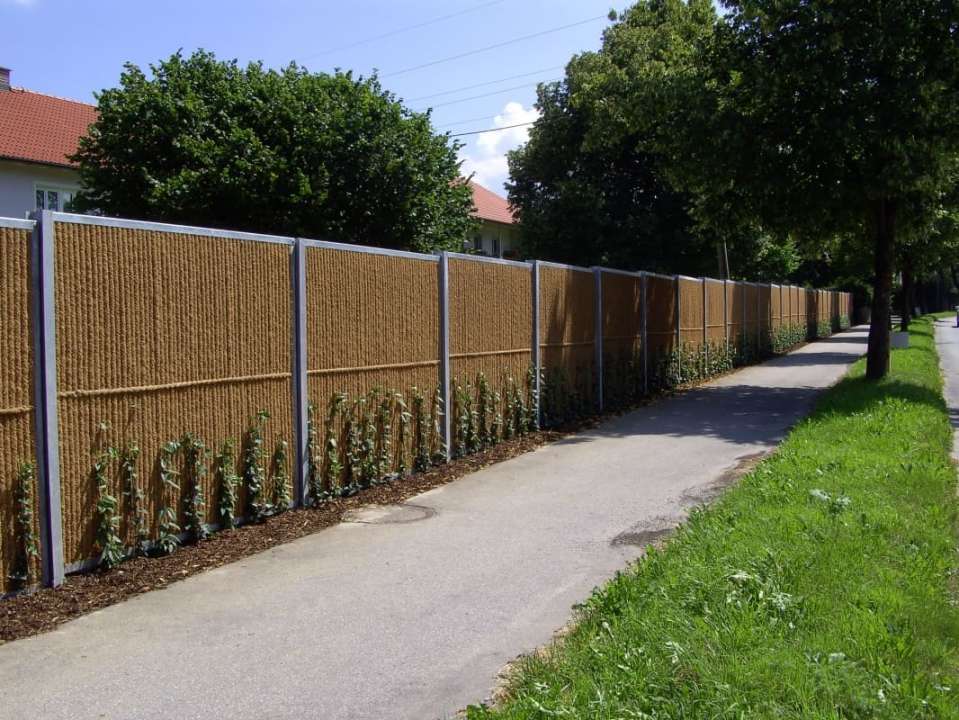

Kokowall Noise Barrier with coir covered poles on each side is the most popular choice where significant noise pollution is an issue, such as along major roads or where industrial sites run adjacent to housing developments.

This year Tendercare installed over 525m of Kokowall screen for Allenbuild at the ex-MOD site in Bordon, Hampshire, to separate the new housing development from a major relief road. 2.4m high barriers are installed on top of newly formed bunds finished 1.2m higher than the adjacent road to ensure maximum acoustic protection.

An added complexity to the installation came in the form of a water culvert running through the woodland adjacent to the development. The banks surrounding the culvert fall steeply and to accommodate this the Kokowall barrier increased in height to 6m, requiring cranes and telehandlers to support the installation works.

Tendercare also planted these bunds with semi-mature trees to provide additional noise filtering. The panels themselves are planted on each side with ivy that will eventually form an attractive, dense green wall with the added environmental benefits of providing food and habitats for birds, insects and small mammals.

Technical properties

  • Sound absorption EN1793-1: Dla = 7dB (a) cat. A2
  • Sound insulation EN1793-2: Rw=30dB (a) Dlr=27dB (a) cat. B3
  • Optional: higher sound insulation Dlr rail >30 dB (a)
  • Maximum construction height: 10m (through stacked panels)
  • Panel weight: 22-28 kg/m2
  • Standard panel width: 3,960mm (maximum 4,960mm)
  • Maximum panel height: 2,000mm (with W=3,960mm)
  • Panel thickness: 9cm
  • Foundation: vibratory driven foundation pile, onto which a lintel is mounted
  • Material: version with coconut tube on both sides
  • Steel frame and posts version: galvanized or powder coated (surcharge)

Advantages

  • Natural, ecological and distinctively attractive
  • High sound insulation and sound absorption
  • Available in every desired lower height and smaller widths
  • Climbing plants can grow on both sides
  • High score in the most economically advantageous tender projects
  • Certification: CE in accordance with EN14388: 2005 and GCW2012
  • Certificate: NL Green label A and European patented
  • NL invention and own production
  • Relatively short construction time
